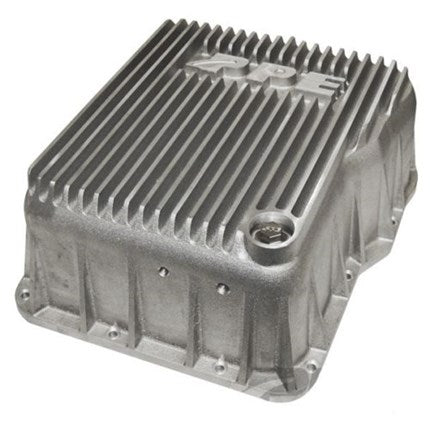

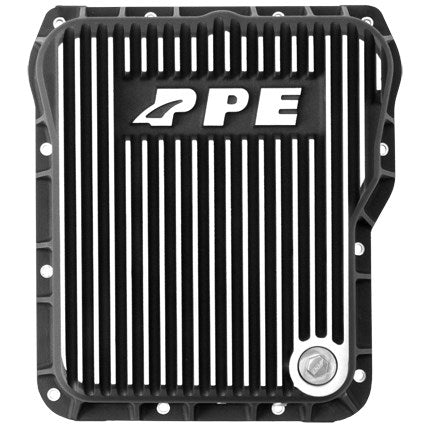

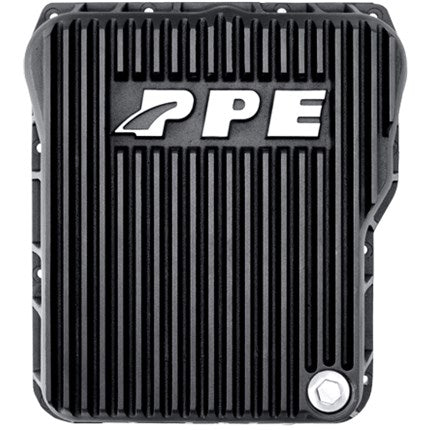

PPE Allison Deep Transmission Pan - 01-19 Allison 1000 Transmission - 128051010
- Free Shipping in USA
- In stock, ready to ship
- Inventory on the way
The new heavy Duty PPE Transmission pan is cast from A356-T6 aluminum alloy. Fluid capacity increased by 4 quarts. Robust side ribs provide added strength to transmission. 1 1/4" high-internal heatsink baffles absorb heat and channel oil flow to filter oil pick-up port. 3/4" deep-bottom heatsink, with flow through channels, dissipates heat into passing air flow. Bare aluminum finish significantly reduces transmission oil temperatures. 1/4" NPT and 1/8" NPT threaded ports for gauge sensors. Retains use of high quality original Allison pan gasket.
Includes Allison deep pan filter and installation hardware. 1" 304 Stainless drain plug with large 17mm hex head and re-usable VITON O-ring.
PPE Allison Deep Transmission Pan
- Cast from A356-T6 aluminum
- Robust side ribs provide added strength to transmission
- Retains use of high quality original Allison pan gasket
- Significantly reduces transmission oil temperatures
- Includes Allison deep pan filter
- Fluid capacity increased by 4 quarts
- 1/4" NPT and 1/8" NPT ports available for additional sensors
- Re-usable VITON drain plug O-ring
- 1" 304 Stainless Steel drain plug with 17mm hex head
- High strength Neodymium drain plug magnet collects harmful ferrous metals
